SKU: 330 Category:

330

Full port brass ball valve PN25, lever handle version (Fig. 330) and butterfly handle version (Fig. 330F)

Additional information

Material

Typology

Connection

PN

DN

, , , , , , , ,

Certificates

Description

Full port brass ball valve
Diameters from DN10 – ⅜” to DN100 – 4″
Threaded F/F (ISO 228/1)
Air testing according to EN12266-1
Blow-out proof stem
O-ring + adjustable packing
With handle or butterfly (up to DN≤50)
ACS (DN≤50), WRAS (DN≤50) and TR CU 010 compliant

PN25 (when used with air PN16 for DN≤50, PN10 for DN≥65)
Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)

Working conditions
● Suitable for: water, 0°C to +95°C
● Suitable for: air, -10°C to +110°C
● Not suitable for: gases and liquids group 1 (Dir. 2014/68/EU)

Downloads

Codes

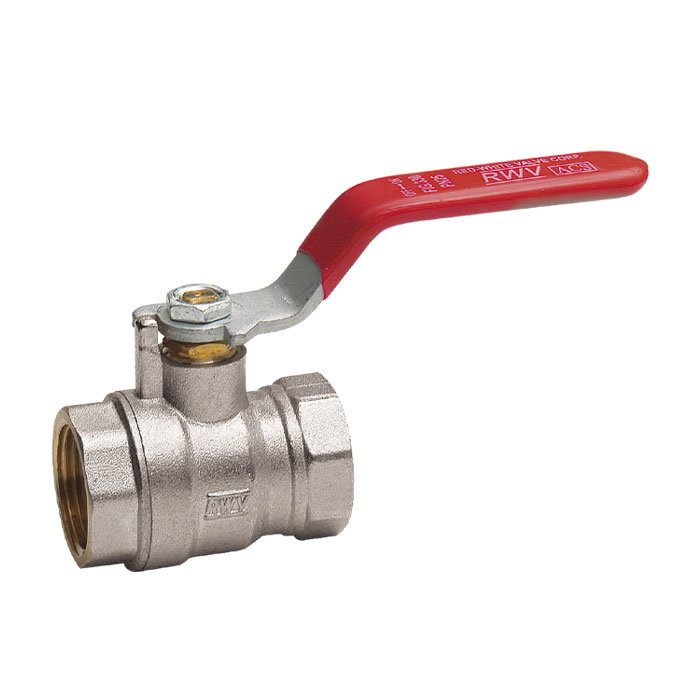

330 - Lever handle version

VIR CodeSize mm - inchesPcs per CartonUnit weight (g)Weight per carton (Kg)
F330K0008.1670008 - 1/4"361204.3
F330K0010.1670010 - 3/8"361204.3
F330K0015.1670015 - 1/2"241784.3
F330K0020.1670020 - 3/4"162403.8
F330K0025.1670025 - 1"104204.2
F330K0032.1670032 - 1 1/4"3659021.2
F330K0040.1670040 - 1 1/2"2485020.4
F330K0050.1670050 - 2"12133016
F330K0065.1670065 - 2 1/2"6296317.8
F330K0080.1670080 - 3"4374715
F330K0100.1670
100 - 4"2584111.7

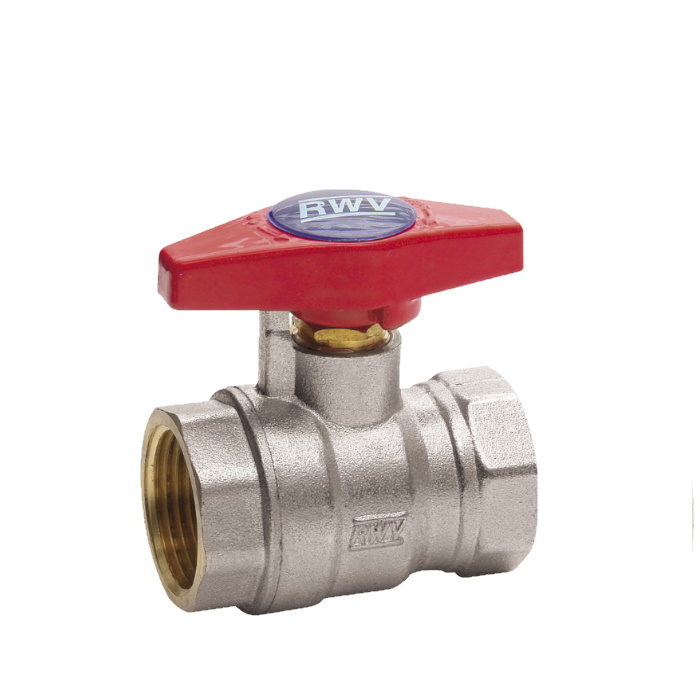

330 - Butterfly handle version

VIR CodeSize mm - inchesPcs per CartonUnit weight (g)Weight per carton (Kg)
F330K0008.1672008 - 1/4"361003.6
F330K0010.1672010 - 3/8"361003.6
F330K0015.1672015 - 1/2"241433.4
F330K0020.1672020 - 3/4"162103.4
F330K0025.1672025 - 1"103603.6
F330K0032.1672032 - 1 1/4"105354.2
