Description
DZR brass strainer with drain and side bosses
DN020 – ¾”
Threaded F/F (ISO 228/1)
Olive and nut (O/N) mounting kit on request
(for 22mm pipe according to European copper tubing, EN1057)
Stainless Steel strainer (20 mesh)
With threaded drain (⅜” ISO 7/1 Rp)
With 4 threaded and plugged side bosses (¼” ISO 7/1 Rp)
Optional accessories available for drain and side bosses
PN25 (max 25 bar up to 110°C, max 20 bar above)
PN16 with O/N (max 16bar up to 30°C, max 5bar at 120°C)
Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
Working conditions
● Suitable for: water, -10°C to +130°C (120°C with O/N kit)
below 0°C only for water with added antifreeze fluids
over 100°C only for water with added anti-boiling fluids
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/EU)
Downloads
Codes
89DV
VIR Code | Size mm - inches | Pcs per Carton | Unit weight (g) | Weight per carton (Kg) |
---|---|---|---|---|
F89DV0020.1979 | 020 - 3/4" | 1 | 374 | 0.4 |

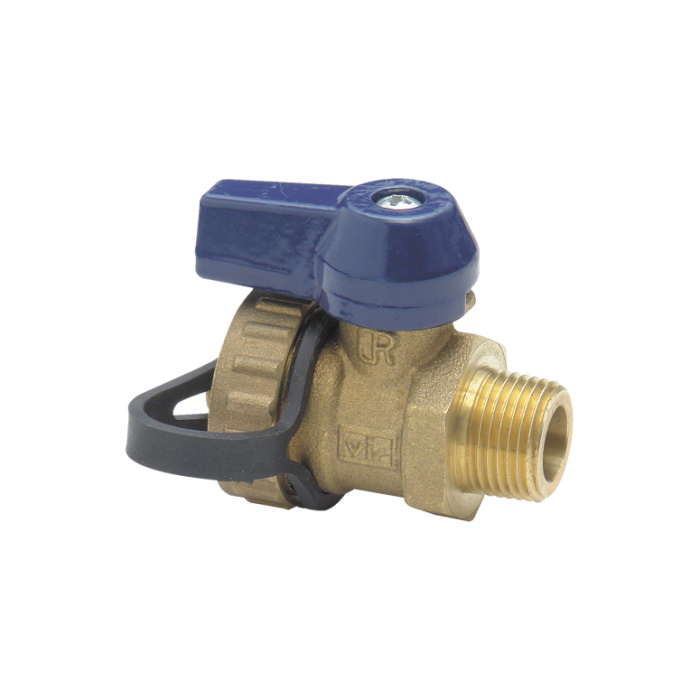

89DV-241 valve for drain
VIR Code | Size mm - inches | Pcs per Carton | Unit weight (g) | Weight per carton (Kg) |
---|---|---|---|---|
F241X0010.1962 | 010 - 3/8" | 1 | 130 | 0.1 |
