9565XL

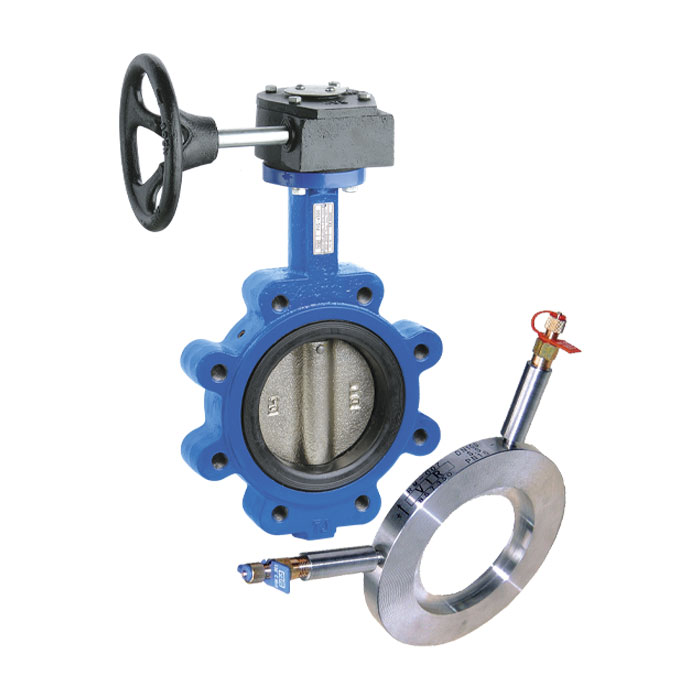

Commissioning kit Fig. 9565XL composed by ductile iron Lug butterfly valve Fig. 4325G and stainless steel wafer flow metering disc Fig. 9450
Additional information
| Material | |
|---|---|
| Typology | |
| Connection | |
| PN | |
| DN |
Description
Ductile iron Lug butterfly valve Fig.4325
For EN1092 PN16 flanges
Lengths according to EN558-1 series 20 (ex DIN3202 K1)
Design according to EN593
Testing according to EN12266-1
Epoxy coating (min. 150μm)
Stainless steel Wafer metering station Fig. 9450
For EN1092 PN16 flanges
Tolerance on nominal Kvs ±5%
Diameters from DN350 – 14″ to DN600 – 24″
TR CU 010 compliant
PN16
Working conditions
● Suitable for: water, -10°C to +110°
below 0°C only for water with added antifreeze fluids
over 100°C only for water with added anti-boiling fluids
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/EU)
Downloads
Codes
9565XL
| VIR Code | Size mm - inches | Pcs per Carton | Unit weight (g) | Weight per carton (Kg) |
|---|---|---|---|---|
| 4325G+9450 | 350 - 14" | 1 | 92300 | 92.3 |
| 4325G+9450 | 400 - 16" | 1 | 152200 | 152.2 |
| 4325G+9450 | 450 - 18" | 1 | 175700 | 175.7 |
| 4325G+9450 | 500 - 20" | 1 | 247600 | 247.6 |
| 4325G+9450 | 600 - 24" | 1 | 300500 | 300.5 |
