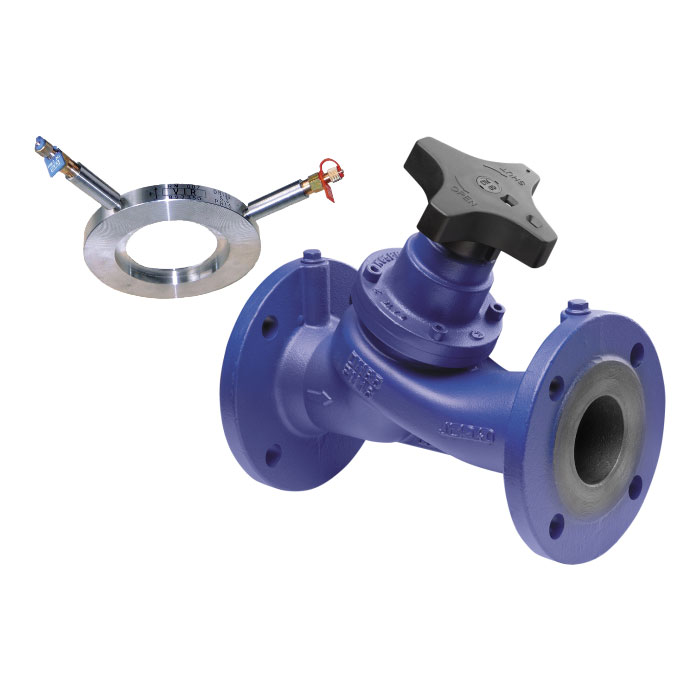

Static balancing valve Fig. 9565P composed by cast iron double regulating valve Fig. 9555P and stainless steel wafer flow metering disc Fig. 9450
Additional information
Material | |
---|---|
Typology | |
Connection | |
PN | |
DN |
Description
Variable orifice cast iron double regulating valve Fig. 9555P
Flanged PN16 according to EN1092-2 (ex DIN2533)
Lengths according to EN558-1 series 1 (ex DIN3202 F1)
Alkyd/acrylic single layer waterpaint coating (50-100μm)
Stainless steel Wafer metering station Fig. 9450
For EN1092 PN16 flanges
Tolerance on nominal Kvs ±5% (test according to BS7350)
Diameters from DN065 – 2½” to DN300 – 12″
TR CU 010 compliant
PN16
Free of CE marking (cat. according to Art. 4.3 Dir. 2014/68/EU)
Working conditions
● Water, -10°C to +110°
below 0°C only for water with added antifreeze fluids
over 100°C only for water with added anti-boiling fluids
● Not suitable for: gases group 1 & 2, liquids group 1 (Dir. 2014/68/EU)
Downloads
Codes
9565P
VIR Code | Size mm - inches | Pcs per Carton | Unit weight (g) | Weight per carton (Kg) |
---|---|---|---|---|
9555P+9450 | 040 - 1 1/2" | 1 | 7072 | 7.1 |
9555P+9450 | 050 - 2" | 1 | 9442 | 9.4 |
9555P+9450 | 065 - 2 1/2" | 1 | 14868 | 14.9 |
9555P+9450 | 080 - 3" | 1 | 19262 | 19.3 |
9555P+9450 | 100 - 4" | 1 | 25967 | 26 |
9555P+9450 | 125 - 5" | 1 | 36560 | 36.6 |
9555P+9450 | 150 - 6" | 1 | 51450 | 51.5 |
9555P+9450 | 200 - 8" | 1 | 118640 | 118.6 |
9555P+9450 | 250 - 10" | 1 | 164350 | 164.4 |
9555P+9450 | 300 - 12" | 1 | 217330 | 217.3 |
9555P+9450 | 350 - 14" | 1 | 387400 | 387.4 |
9555P+9450 | 400 - 16" | 1 | 524500 | 524.5 |
